MAGE 10 B-5 Smart Drape Motor Kit with 5 meters rod

Short Description:

*DIY motorized curtain kit, including motor, track , remote and mounting accessories

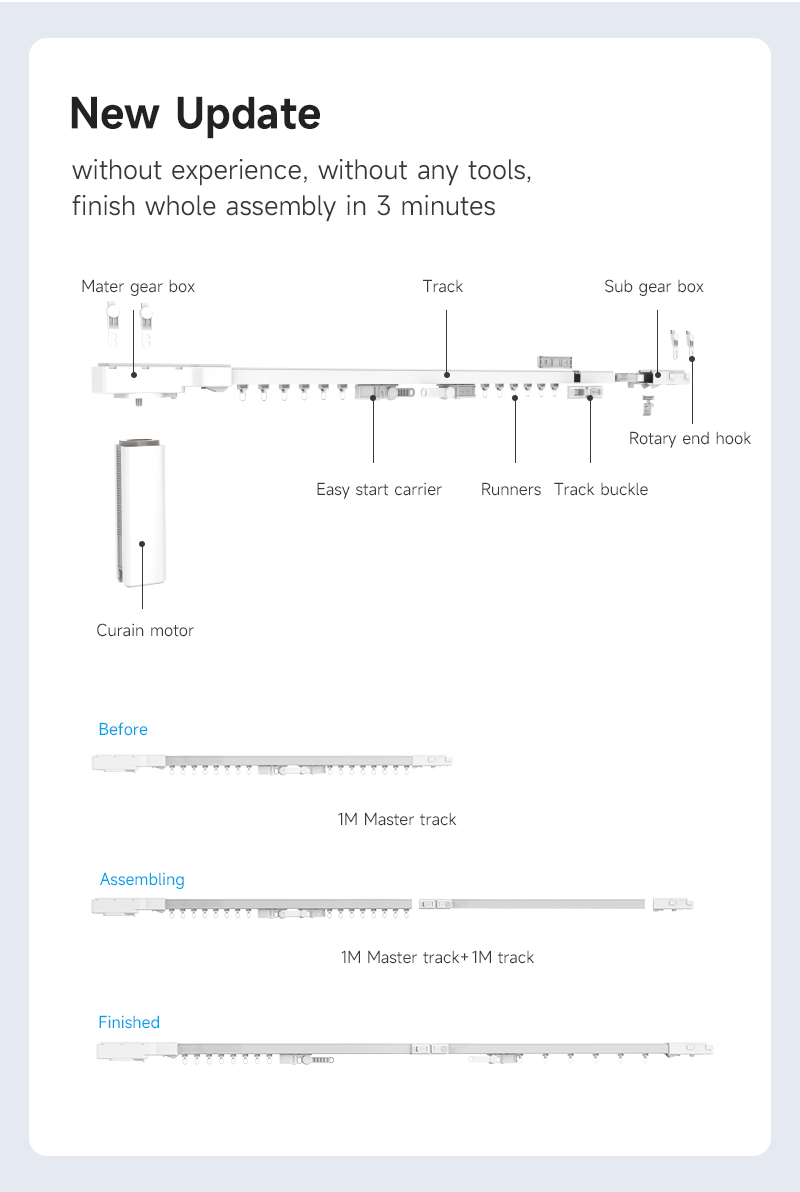

*Track assembling without tooling
*Special track assembling system 10 times shorten the assembling time
*The curtain kit could connect to different smart home platform, to be integrated into the smart home system through APP control, voice control etc.

Send email to us

Previous: MAGE 10 B-4 Smart Drapery Motor Kit with 4 meter track
Next: MAGE 10 B-2 Smart Curtain Pack with 2 meters curtain track

Product Detail

Product Tags

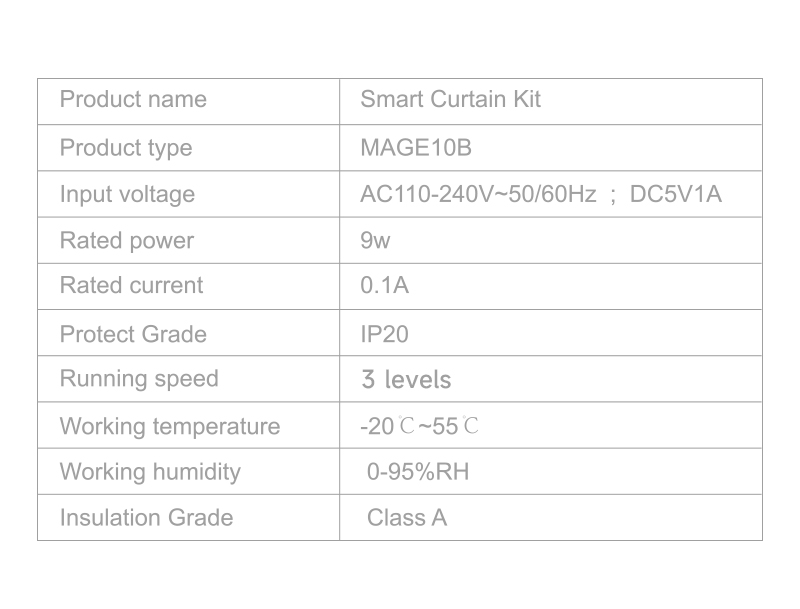

Curtain motor specification

Radio Frequency	433.92MHz
Radio distance	50m
Input Voltage	AC 100~240V/5V
Nominal consumption	22W
Nominal current	0.1A

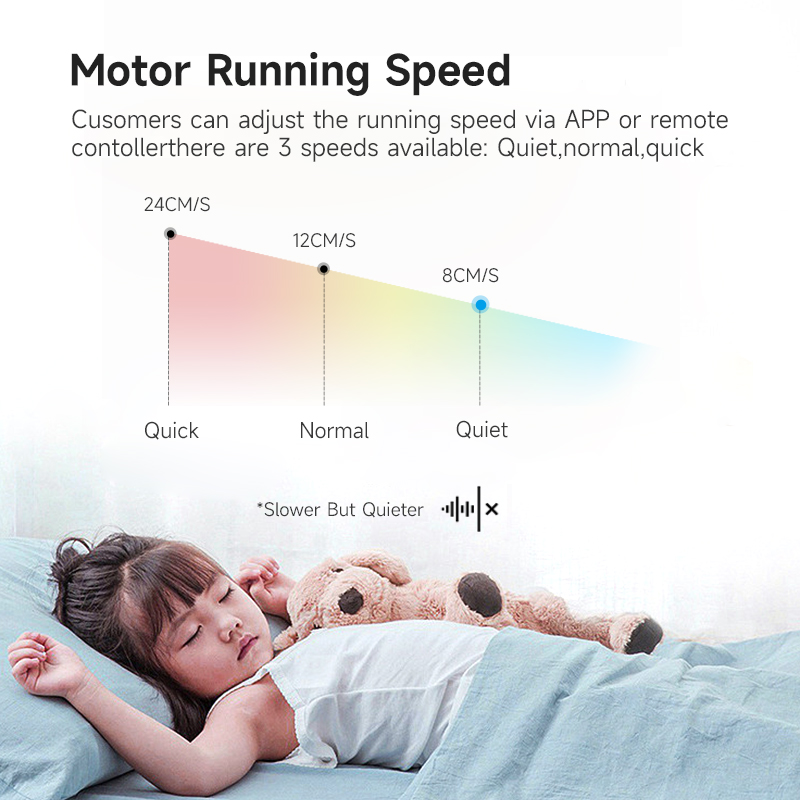

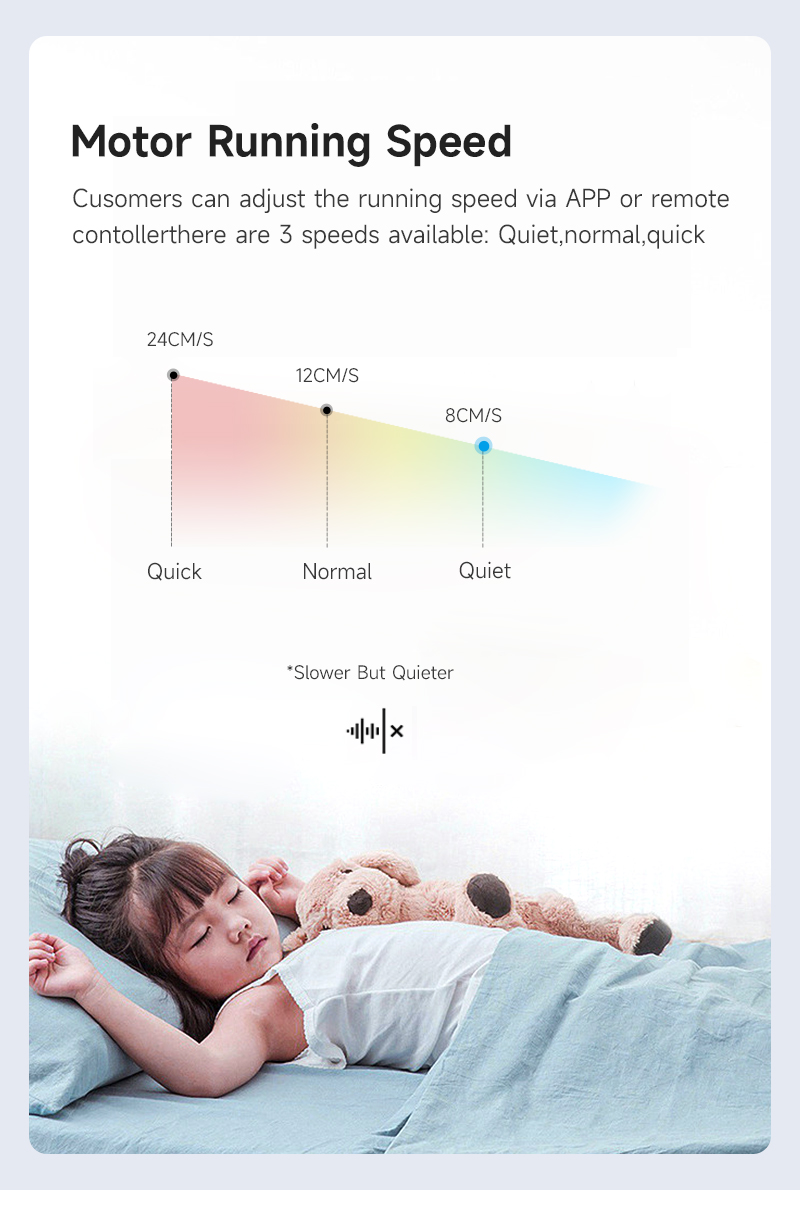

Working speed	12-36cm/s
Working temperature	-20-55 ℃
Insulation index	Class B
Protection index	IP20
Loading capacity	50kgs

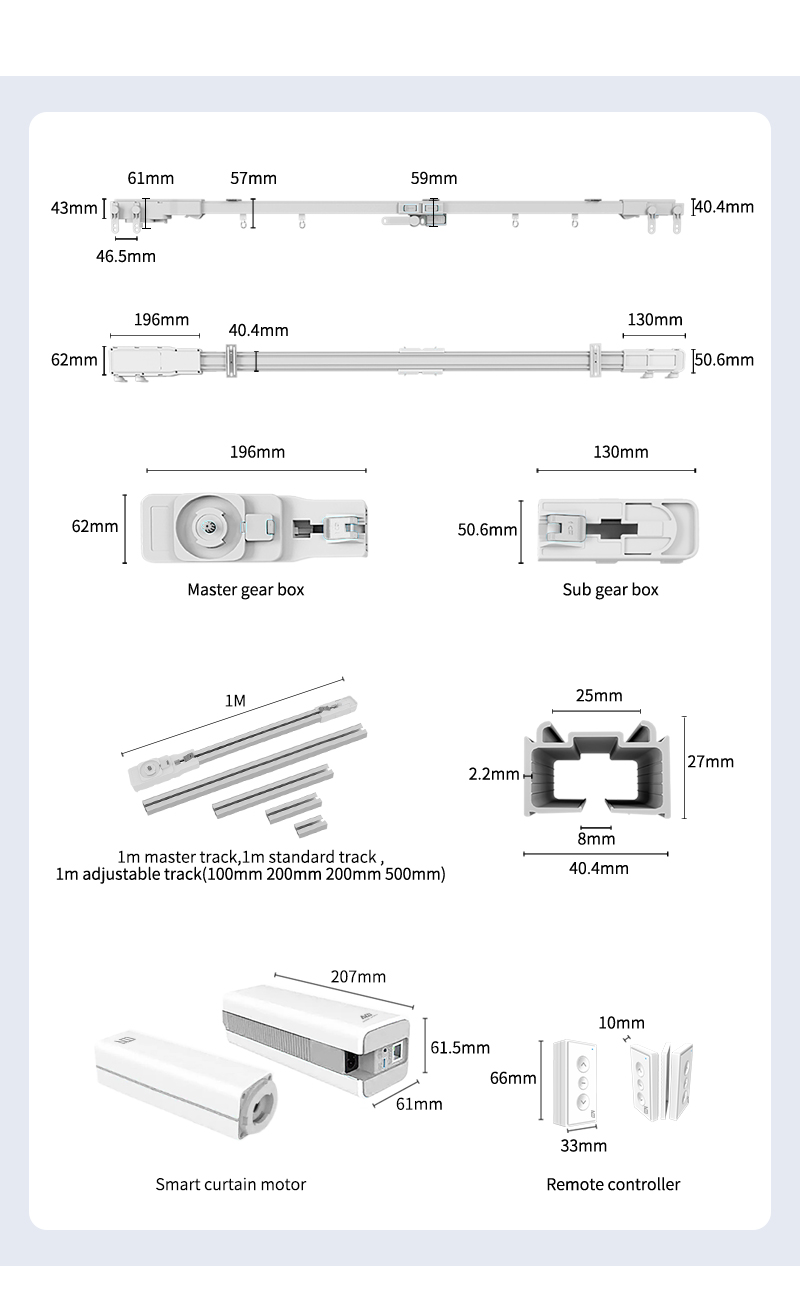

Motor size	206mm X 61mm X 61mm

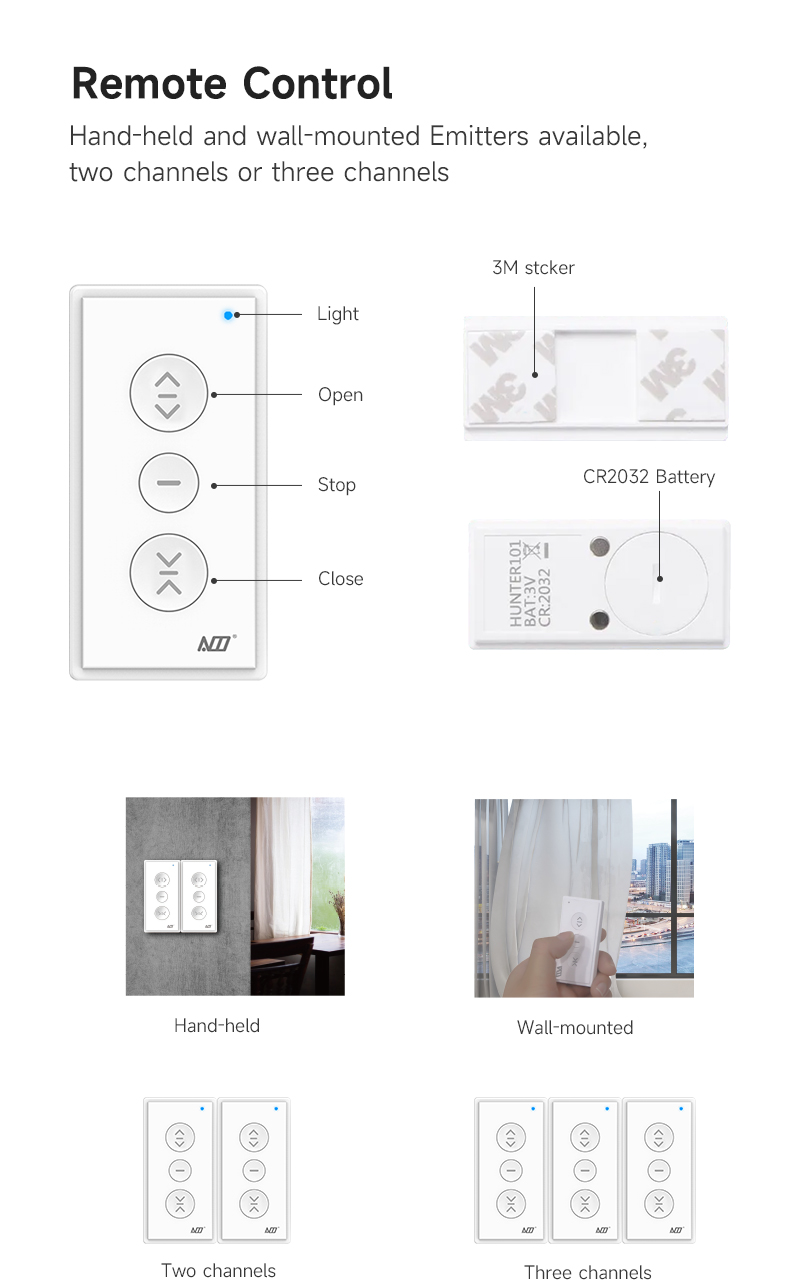

Remote Specification

Radio Frequency	433.92MHz
Radio distance	50m
Battery model	CR2032
Battery voltage	3V
Battery life	2 years
Battery power	210MAH
Fixing design	Magnetic
Product size	66mm X 33mm X 10mm
